300W | 400W | 500W | 600W
Offering Lumen Output of 45,000 Lm to 90,000 Lm
45,000 Lm to 90,000 Lm
The lighting needs of a bustling sports stadium, a sprawling parking lot, or an industrial complex that operates around the clock. Redeanled, the most reliable area lighting solution provider in the Middle East offers powerful, reliable and efficient services. Our ALR01 model is intricately designed to deliver precision illumination that enhances visibility, safety and productivity. This isn’t just about throwing light into a space, it about elevating your space with the perfect area lights.

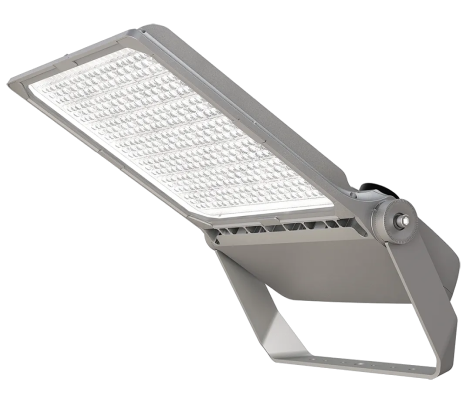

The ALR01 is a modular flood sports lights that offers a versatile power range of 300W to 600W. The 300W configuration in this range operates as a single mode with a light efficiency of 150Lm/W. This foundational efficiency is a hallmark of the entire series, designed to minimize energy consumption while maximizing light output.

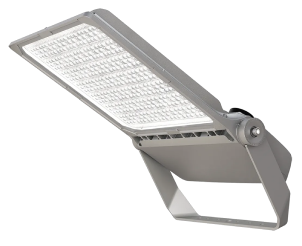

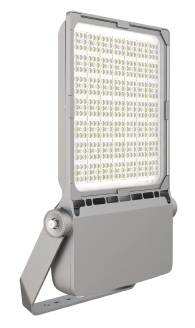

ALR01 AREA LIGHT SERIES
Features:
- Light efficiency up to 180 Lm/W, standards 170 Lm/W
- 3-in-1 wattage selectable: 300W/ 400W/ 500W/ 600W
- Lumen output of 45,000 Lm to 90,000 Lm
- Color temperature: 3000K/4000K/5000K
- Beam angle: 30°, 60°, 90°, T2, NB-P60°
- IP66 water-proof & IK08
- 6KV, 10KV, 20KV surge protection optional
- Operating Temperature: -40°C to +50°C
- Lifespan L70B50 100,000H@25°C
- Certificates CB, CE, ENEC, RoHS available
- 5 years warranty
Specifications
Model
Wattage
300W/ 400W/ 500W/ 600W
CCT
3000K/ 4000K/ 5000K/ 5700K/ 6500K
Lumen Output
45,000 Lm/ 60,000 Lm/
75,000 Lm/ 90,000 Lm
Dimming
0-10V/ DALI2.0
CRI
Ra70
Certifications
CB/ CE/ ENEC/ RoHS
Applications
Engineered for Resilience and Performance
The ALR01 is built to withstand the challenges of the Middle East’s climate and environment condition. An overview of our key highlights include

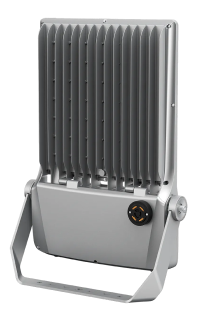

Robust Construction: This model contains structural components such as heat sinks, power boxes and supports, crafted from ADC12 aluminum alloy. This material choice provides exceptional strength and durability.
Corrosion Resistance: The surface of the ALR01 undergoes powder treatment, resulting in a robust finish that resists corrosion. This is crucial for outdoor applications where exposure to the elements is constant.
Modular Design for Easy Maintenance: One of the standout features of the ALR01 is its modular design. Each module is designed to operate independently, so if one module happens to be damaged, it doesn’t affect the functionality of the other modules. This significantly simplifies maintenance, reduces downtime and helps our clients to save both time and money.

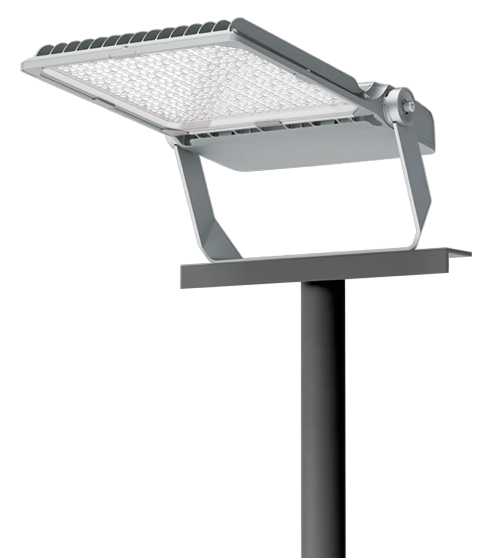

Precise Light Direction: One of the significant concerns regarding Area Light is regarding achieving right illumination angle as it is critical for maximizing the effectiveness of floodlights. The ALR01 allows for individual adjustment of each module by 300. This flexibility makes it easy to fine-tine the direction and range of the light to suit the specific requirements of the application.
Read More
Key Features that set the ALR01 Apart
The ALR01 Area Light Series is packed with features designed to deliver exceptional performance and value.
High Light Efficiency: The ALR01 boasts impressive light efficiency, reaching up to 180 Lm/W with a standard efficiency of 170 Lm/W. This means that you will get more light output for every watt of energy consumed, translating to significant energy saving.
3-in-1 Wattage Selectable: The ALR01 offers diverse wattage selection ranging from 300W, 400W, 500W and 600W. This provides flexibility and allows you to have the option of having different lighting needs within a single fixture.
Powerful Lumen Output: This product has a lumen output ranging from 45000 Lm to 90000 Lm. This empowers this Area light to deliver the brightness needed to illuminate a larger space effectively.
Versatile Color Temperature Options: The light is available in color temperatures of 3000K, 4000K and 5000K
3000K – Warm Inviting Light
4000K – Neutral White Light
5000K – Crisp, Daylight like illumination
Optimized Beam Angles: The ALR01 has various beam angle options: 30, 60, 90, T2 and NB P60 allowing you to direct the light when needed.
IP66 Waterproof & IK08: The ALR01 is rated IP66 for waterproof protection and IK08 for impact resistance. This ensures reliable performance even in harsh weather conditions and environment where there is a risk of impact.
Surge Protection: The ALR01 offer optional surge protection (6KV, 10KV, 20KV) to safeguard the fixture against voltage spikes, enhancing its reliability and lifespan.
Wide Operating Temperature Range: The ALR01 is designed to operate in a wide temperature range of -40 C to +50 C, making it suitable for use in diverse climates.
Long Lifespan: The ALR01 boasts a significantly long lifespan. The fixture can maintain 70% of its initial lumen output for at least 100000 hours at 25 C, significantly reducing replacement frequency.
Certifications & Warranty: This area light is certified with CB, CE, ENEC and RoHS, ensuring compliance with international standards. It also comes with a 5 year warranty, providing peace of mind and demonstrating our commitment to quality.
Specifications at a Glance
Here is a quick overview of the ALR01’s key specifications
Light efficiency: 180 Lm/W, standards 170 Lm/W
3-in-1 wattage selectable: 300W/ 400W/ 500W/ 600W
Lumen output: 45,000 Lm to 90,000 Lm
Color temperature: 3000K/4000K/5000K
Beam angle: 30°, 60°, 90°, T2, NB-P60°
Operating Temperature: -40°C to +50°C
Lifespan: L70B50 100,000H@25°C
Certificates: CB, CE, ENEC, RoHS available
Warranty: 5 years
Applications: Where the ALR01 excels
The ALR01 Area Light Series is a versatile lighting solution suitable for wide range of applications including

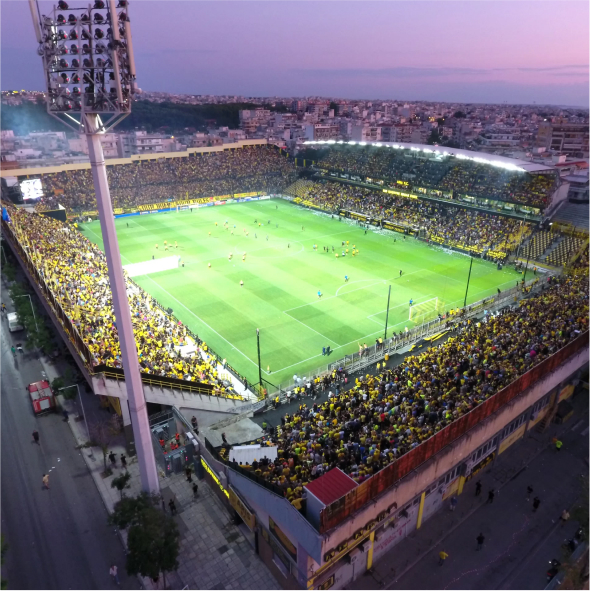

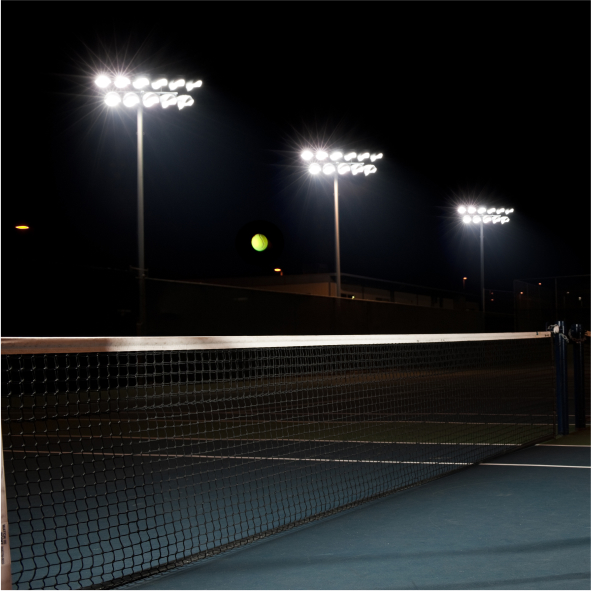

Sports Stadiums and Arenas: The light provides high intensity and uniform illumination for professional sports and events. The precise beam control minimizes glare and ensures optimal visibility for athletes and spectators.

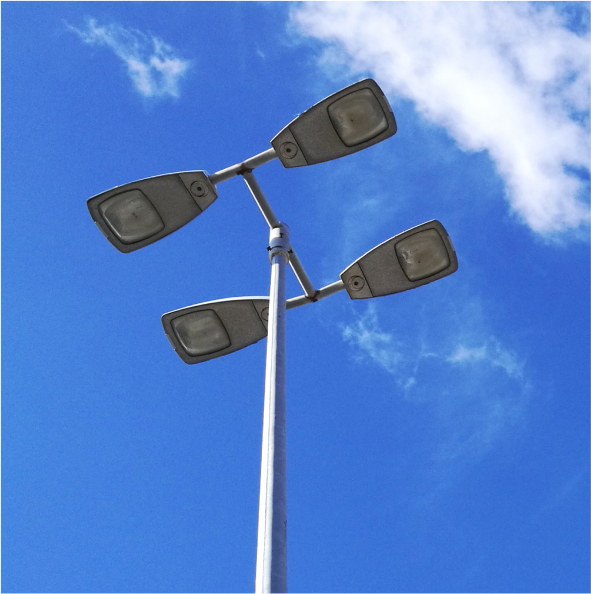

Large Area Illumination: The ALR01 would be suitable for illuminating parking lots, storage yards and transportation terminals which enhances the safety and security of the space.
Industrial Facilities: This Area Lights ensures a safe and productive work environment for manufacturing plants, warehouses and construction sites.

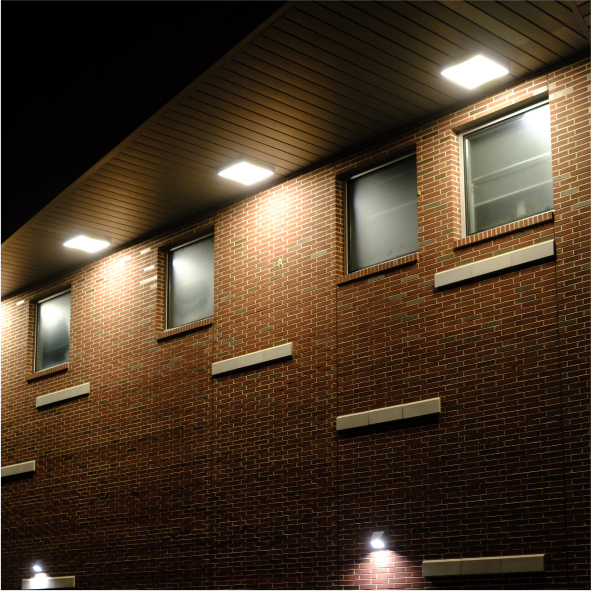

Architectural Lighting: This modular light highlights the aesthetic appeal of the building facades and architectural features.
Public Spaces: When installed in lighting parks, plazas and recreational areas, the light creates a welcoming and safe space for the community.
Why Choose the ALR01?
Energy Efficiency: This light will reduce your energy consumption and lower operational costs.
Reliability: Known for its reliability, the ALR01 will consistently deliver high quality illumination even in challenging conditions
Durability: The robust construction and corrosion resistant finish ensure long lasting performance and minimal maintenance
Flexibility: The unique features of the light such as adjustable modules, wattage selection and beam angle options makes the light adaptable to your needs.
Safety: The steady illumination and surge protection enhance safety and security of the space.
The ALR01 Area Light Series from Redeanled is more than just a light fixture, it is an investment in quality, performance and sustainability. Contact us today to learn how this product can illuminate your world.
