120W | 150W | 200W
Offering Lumen Output of 18,000 Lm to 30,000 Lm
18,000 Lm to 30,000 Lm

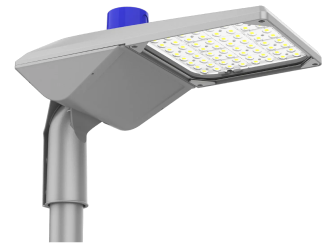

SLR02 LED Street Light Series: Illuminating the future of urban and rural roadways
Effective Dubai Municipality street lighting is a cornerstone of safety, security, and urban development in modern infrastructure. It shapes our nighttime environments, enabling safe passage for vehicles and pedestrians while fostering a sense of community well-being. The SLR02 LED street light series represents a significant advancement in this critical field, engineered to deliver exceptional performance, versatility, and reliability across a broad spectrum of applications. A Redeanled, we are proud to offer lighting solutions that redefine industry standards, and the SLR02 series exemplifies this commitment to innovation and excellence.
SLR02 LED STREET LIGHT SERIES
Features:
- Wattage: 120W/ 150W/ 200W
- Light efficiency 135 Lm/W and 150 Lm/W optional, Lumen output from 18,000 Lm to 30,000 Lm
- Safety rope to enhance safety and prevent the risk of accidental falls
- Beam angle: Type II, Type III, Type IV, for two-lane or three-lane roads
- IP66 water-proof & 10KV surge protection
- Operating Temperature: -30°C to +50°C
- Life Span L70B50 10,0000h@35°C
- Certificates CE, RoHS available
- 5 years warranty
Specifications
Model
Wattage
120W / 140W/ 200W
CCT
3000K/ 4000K/ 5000K
Lumen Output
~18,000 Lm/ ~21,000 Lm
~30.000 Lm
Dimming
Photocell Motion Sensor
CRI
Ra70
Certifications
UL/ ENEC/ CE/ CB/ RoHS CQC

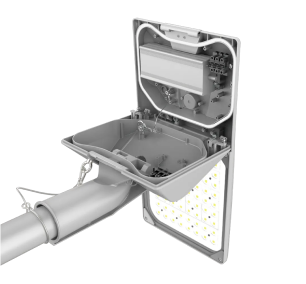

Tool-free Access to Electronic Compartment with a Snap Fastener
Adopt high-power LED patch (Lumileds/Osram) light source, power supply can match any brand.

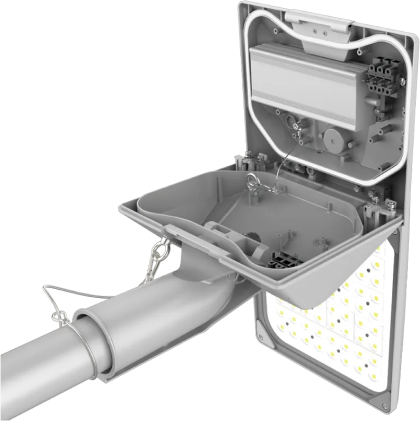

Power-off Switch Design, Human and Safer
The power-off switch design of SLR02 street lights prioritizes the safety and convenience of electricians during high-altitude maintenance. It automatically cuts off power when the lamp body is opened, minimizing the risk of electric shock and ensuring a safer working environment.

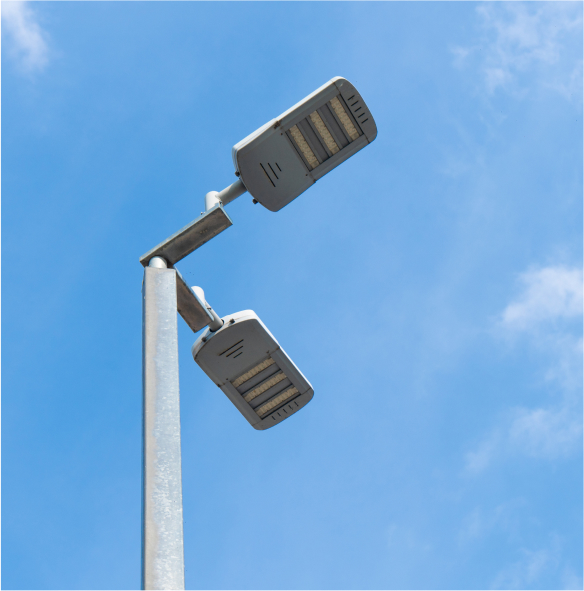

Safety Rope
Safety rope is designed to securely fasten the street light to the installation pole, prevent the risk of accidental falls, provide an additional layer of protection, and ensure the reliability of the fixture.

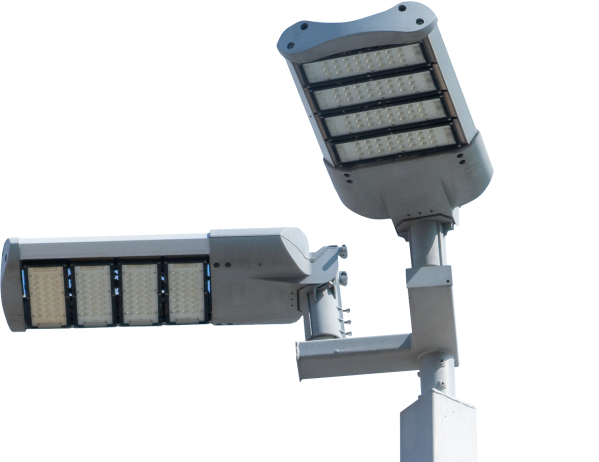

Lens Modular Design Offers Easy Maintenance
Lens Modular design offers easy maintenance, disassembly, and assembly. This makes it easier to replace or upgrade specific components without the need for extensive disassembly of the entire fixture. This not only reduces mold costs but also streamlines the manufacturing process and optimizes production costs.

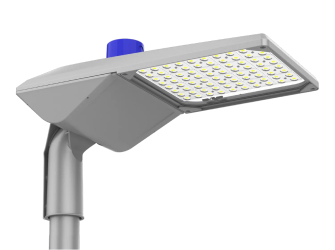

Lens + Glass
The combination of a lens and glass in SLR02 Street lights effectively mitigates the impact of sunlight on the PC lens material. This helps to prevent yellowing and brittleness, leading to reduced light attenuation and improved overall lamp performance stability.
Distribution Curve
Optional lighting for Type II, Type III, and Type IV, for two-lane or three-lane roads.
Applications
A New Perspective on Street Lighting: Modular Design and Adaptability
The SLR02 LED street light UAE series distinguishes itself with a unique, forward-thinking modular lens design. This design philosophy offers a level of adaptability and ease of maintenance that positions it apart from traditional street lighting systems.
Modular Versatility: The innovative street lighting system series is available in four sizes and models, with a power range spanning 120W to 200W. The range of options ensures that the SLR02 can be precisely tailored to the specific lighting requirements of diverse environments, from quiet residential streets to expansive highways.
LED flexibility: The modular lens design is engineered to accommodate a flexible combination of 3030 and 5050 LEDs. This compatibility provides versatile lighting options, allowing for customization of light output and efficiency to meet project-specific needs.
Read More

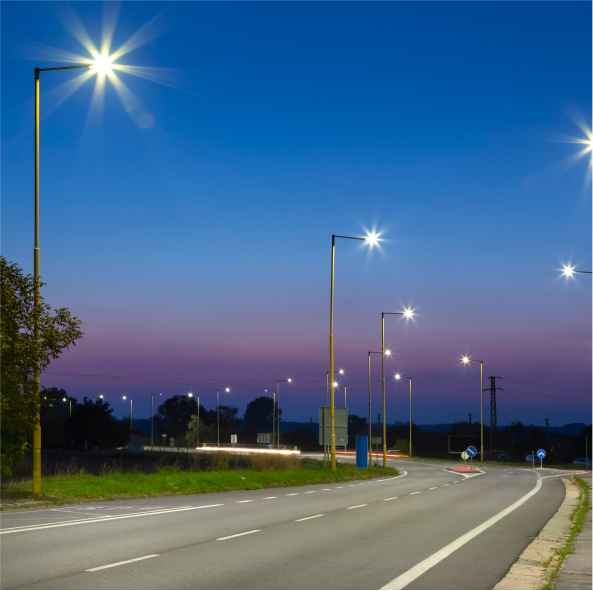

Applications across the spectrum: Lighting for Every Roadway
The SLR02 LED street lights are designed to excel in various applications, demonstrating their adaptability and robust performance.

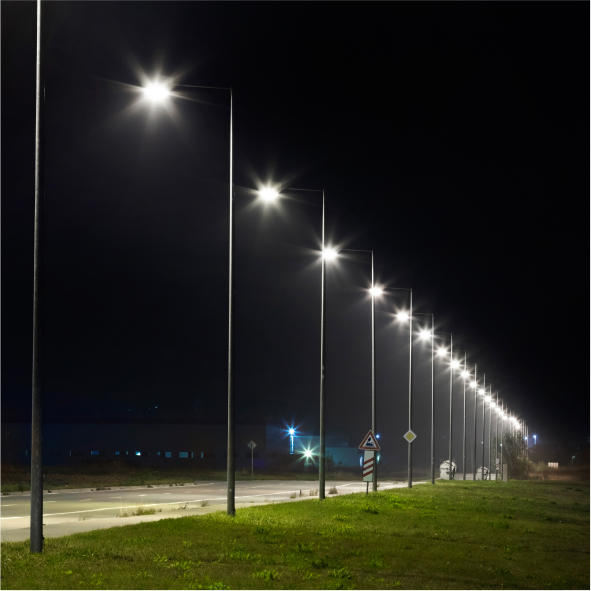

Roads and Highways: From country roads and urban streets to major highways, the SLR02 provides illumination for safe and efficient vehicular traffic.
Public Spaces: LED street lights are also ideal for enhancing visibility and safety in public areas such as parks, industrial parks, plazas, and outdoor parking lots.
Ports and Docks: The SLR02 durability and powerful illumination make it suitable for port and dock lighting requirements.
Engineered for Endurance: Robustness and Weather Resistance
LED Street lights in the UAE are constantly exposed to harsh environmental factors, making durability a critical factor in their design. The SLR02 LED street light series is built to withstand these challenges and maintain consistent performance over time.
Corrosion Resistance: The 30W—240W models feature a smooth surface and a corrosion-resistant coating on the heat sink. This protective coating makes the SLR02 fitting for environments with sand, rain, snow, and even coastal areas with high air corrosion.
Adjustability: The commercial lighting fixture offers + 20 degrees of adjustability, allowing precise alignment to match different pole angles and optimize light distribution.
Optimized Light Distribution: The SLR02 is available with different light angles, including Type II, Type III, and Type IV distributions, to effectively illuminate two-lane or three-lane roads.
Key Features and Benefits: An overview
Let’s examine the key features and benefits to fully appreciate the capabilities of the SLR02 LED Street Light Series.
Wattage Options: The SLR02 series includes 120W, 150W, and 200W models, providing flexibility to match the project’s specific illumination needs.
High Light Efficiency: The SLR02’s light efficiency is 135 Lm/W or 150 LMm/W, and it has different options. This increased efficiency translates to significant energy savings and reduced operating costs.
Powerful Lumen Output: The highway lighting solution delivers lumen outputs ranging from 18000 Lm to 30000 Lm, ensuring ample illumination for various applications
Enhanced Safety: The LED street light in the UAE has a safety rope feature integrated into the design, which improves security during installation and maintenance and prevents accidental falls.
Precise Beam Control: Different beam angle options, such as Type II, Type III, and Type IV distributions, allow tailored lighting patterns for two-lane or three-lane roads.
Superior Protection: The SLR02 boasts an IP66 waterproof rating and 10kV surge protection. This ensures reliable operation in harsh weather conditions and protection against voltage spikes.
Wide Operating Temperature Range: The fixture is designed to operate from -30 °C to +50 °C, making it suitable for diverse climates.
Long Lifespan: The SLR02 has a lifespan rating of L70B50 100000h at 35 °C, indicating a long operational life and reduced maintenance requirements
Certifications and Warranty: The product holds CE and RoHS certifications, assuring compliance with safety and environmental standards. It is also backed by a 5-year warranty, demonstrating confidence in its quality and durability.
Tool-Free Access: The fixture features tool-free access to the electronic compartment with a snap fastener, simplifying installation and maintenance procedures.
High Quality Components: The SLR02 utilizes high-power LED patch light sources from reputable manufacturers like Lumileds and Osram. The power supply is designed to be compatible with various brands.
Power Off Switch: A power off switch design enhances the safety of electricians during high-altitude maintenance by automatically cutting off power when the lamp body is opened.
Lens and Glass Combination: The combination of a lens and glass in the SLR02 design mitigates the effect of sunlight on the PC lens material, preventing yellowing and brittleness and improving lamp performance stability.
A Technical Overview
Here are the detailed specifications of the SLR02 LED street light series
- Model: SLR02
- Wattage: 120W / 140W / 200W
- CCT (Correlated Color Temperature): ~18,000 Lm / ~21,000 Lm / ~30,000 Lm
- Dimming: Photocell / Motion Sensor
- CRI (Color Rendering Index): Ra70
- Certifications: UL / ENEC / CE / CB / RoHS CQC
The SLR02: A Beacon of Innovation and Reliability
The SLR02 LED Street light Series represents a fusion of cutting-edge technology, thoughtful design, and robust construction. It is a testament to Redeanled’s dedication to providing lighting solutions that meet the demands of modern infrastructure and contribute to a safer, more sustainable, and more vibrant world. With its modular design, versatile applications, and focus on durability and safety, the SLR02 series is poised to illuminate the future of urban and rural roadways for generations to come.
