400W | 500W | 600W
Offering Lumen Output of 60,000 Lm to 102,000 Lm
60,000 Lm to 102,000 Lm

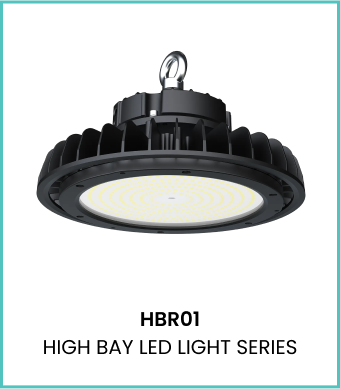

HBR02 High Bay LED light Series: Illumination for Expansive Industrial Spaces
The Redeanled HBR02 High Bay LED light series is a powerful, versatile lighting solution engineered for large-scale industrial and commercial environments. These high-bay LED lights in the UAE are designed to deliver exceptional illumination from high ceilings. The HBR02 series offers a range of wattages and features that make it ideal for warehouses, factories, logistics centers, shipyards, and aircraft manufacturing facilities. Let’s explore the high-bay light series in depth, exploring its key features, benefits, applications, and technical specifications.
HBR02 HIGH BAY LED LIGHT SERIES
Features:
- Power Tunable: 400W/ 500W/ 600W
- High light efficiency is 150Lm/W., Lumen output from 60,000 Lm to 102,000 Lm
- Voltage is AC100-277V and AC277-480V
- High permeability lens, beam angle 60deg, 90deg and 120deg
- UGR<25, uniform light, and a low glare value
- IP65 water-proof, suitable for wet locations
- The lifespan of the light is 54,000 hours and its maintenance is 78.24%
- 1-10V Dimming, DALI, Microwave sensor, Daylight sensor, and ZigBee optional
- Operating Temperature: -30°C to +50°C
- DLC 4.2 Premium
- 5 years warranty
Specifications
Model
HBR02
Wattage
400W/ 500W/ 600W
CCT
4000K/ 5000K/ 5700K/ 6500K
Lumen Output
~60,000 Lm / ~80,000lm Lm /
~102,000 Lm
Dimming
0-10V
CRI
Ra80
Certifications
AC277-480V: UL/ DLC/ FCC/ RoHS
AC100-277V:CE/ CB/ ERP/ ETL/ SAA/ DLC/ ENEC/ RoHS
Installation Situations
400W-600W LED high-power high bay is suitable for large spaces and high installation situations, such as warehouses, factories, logistics centers, shipyards, and aircraft manufacturers.
Covers
16″ PC Cover
(60°, 90°, 120°)
19″ PC Cover
(60°, 90°)
22″ PC Cover
(60°, 120°)
AL Cover
(60°, 90°, 120°)
PC Lens (60°, 90°)
Glass (120°)
Sensor Optional
Installations
Ring Mounting
Hook Mounting
Bracket Mounting
HBR02 LED High Bay Light Series
Applications 150W – 300W (Approx. Suspension Height from 5 Mtr)
The Challenge of Illuminating Large Industrial Spaces
Companies tend to face unique challenges when effectively lighting expansive industrial spaces. These environments often feature high ceilings, vast floor areas, and demanding operational requirements. Inadequate lighting can lead to
Reduced Productivity: Dim or uneven lighting can decrease employee alertness and efficiency.
Safety Hazards: There is a greater risk of accidents and injuries in factories with poor visibility.
Increased Energy Costs: An inefficient lighting system consumes excessive energy, driving up operational expenses
Maintenance Difficulties: Traditional lighting solutions may require frequent and costly maintenance, especially in hard-to-reach areas.
The Redeanled HBR02, the best LED high bay lights for warehouses, is designed to overcome these challenges, providing a high-performance, energy-efficient, and reliable lighting solution for large industrial spaces.
Read More
HBR02: Powerful Illumination and Energy Efficiency
The HBR02 Series is characterized by its high power output, ranging from 400 W to 600 W. This enables the fixtures to deliver substantial lumen output ranging from 60000 Lm to 102000 Lm, ensuring ample illumination even in spaces with high ceilings (up to 10 meters) and large areas.
A key feature of the commercial high bay LED lighting solutions is their elevated light efficiency of 150 Lm/W. This means that the fixtures convert a high proportion of electrical energy into light, decreasing energy waste and reducing electricity bills. By replacing traditional 800 – 1500 HID lamps, the 400W—600W HBR02 models offer significant energy savings, contributing to a greener and more sustainable environment.
Key Features and Benefits of the HBR02 Series
The High Bay LED light series offers comprehensive features and benefits.
Power Tunability: The HBR02 series provides power options of 400W, 500W, and 600W, allowing for customization of the lighting system to meet specific requirements
High Lumen Output: This dusk-to-dawn high bay lighting delivers powerful illumination for large spaces with lumen outputs ranging from 60000 Lm to 102000 Lm
Energy Efficiency: A high light efficiency of 150 Lm/W minimizes energy consumption and reduces operating costs.
Dual Voltage Compatibility: The HBR02 series supports both high-voltage AC277-480V and low-voltage AC100-277V, providing flexibility for installation in various electrical systems.
Optimized Light Distribution: The elevated permeability lenses and beam angle options of 60, 90, and 120 angles ensure uniform and efficient light distribution.
Glare Reduction: A low UGR (Unified Glare Rating) of less than 25 minimizes glare and enhances visual comfort, creating a safer and more productive working environment.
Durability and Reliability: An IP65 rating protects against water and dust, making the HBR02 series suitable for demanding industrial environments. The lights have a lifespan of 54000 hours and a maintenance level of 78.24%. I
Intelligent Lighting Control: The HBR02 series offers various options, including 1- 10V dimming, DALI, microwave sensor compatibility, daylight sensor compatibility, and Zigbee compatibility. These features enable further energy savings and customization of the lighting system.
CCT (Correlated Color Temperature): The high bay warehouse lights offer a range of color temperatures (4000K to 6500K) to suit different application needs
CRI (Color Rendering Index): A CRI with a value of Ra80 indicates good color accuracy.
Wide Operating Temperature Range: The HBRO2 series is designed to function in temperatures ranging from -30 °C to +50 °C, making it suitable for various climates.
Certifications and Warranty: The commercial high bay LED light is DLC 4.2 Premium listed and comes with a 5-year warranty, ensuring quality and reliability. The product also has AC277-480V: UL / DLC/ FCC/ RoHS and AC100-277V: CE/ CB / ERP/ ETL / SAA / DLC / ENEC / RoHS certifications.
Applications of the HBR02 High Bay LED Light Series
The High Bay Light series is ideally suited for a wide range of applications, including
Warehouses: The light provides bright, uniform illumination for storage areas, picking zones, and loading docks.
Factories: This project ensures safe and productive working conditions on assembly lines, manufacturing floors, and processing areas.
Logistics Centers: This high bay series is ideal for illuminating sorting facilities, distribution centers, and shipping terminals.
Shipyards: These lights can withstand harsh marine environments and provide adequate lighting for shipbuilding and repair activities.
Aircraft Manufacturers: The model meets the demanding lighting requirements of aircraft assembly and maintenance facilities.
Large Retail Spaces: The light can illuminate hypermarkets, big box stores, and exhibition halls.
Technical Specifications
- Model: HBR02
- Wattage: 400W, 500W, 600W
- CCT: 4000K, 5000K, 5700K, 6500K
- Lumen Output: ~60000Lm, ~80000 Lm, ~102000 Lm
- Dimming: 0-10V
- CRI – Ra80
- Certifications: AC277- 480V: UL / DLC / FCC / RoHS; AC100 – 277V: CE / CB / ERP / ETL / SAA / DLC / ENEC / RoHS.
Customization Options
The HBR02 series offers several customization options to tailor the lighting solutions to specific needs.
Covers
PC Covers: They are available in 16”, 19”, and 22 ” sizes, with beam angles of 60, 90, and 120 for precise light distribution control.
AL Cover: An aluminum option for enhanced durability and aesthetics, also available with 60, 90, and 120 beam angles.
PC Lens and Glass: The high bay LED light with surge protection has options for PC lens (60 and 90 degrees) and glass (120 degrees) covers for specialized light output characteristics.
Sensor Compatibility: The HBR02 series is compatible with various sensors, enabling advanced lighting control and energy savings.
Installation Flexibility
The HBR02 series supports three installation methods, including Ring Mounting, Hook Mounting, and Bracket Mounting.
Why Choose the Redeanled HBR02 High Bay LED light series?
The high bay series stands out as a superior lighting solution for large industrial spaces due to its
High Performance: This ensures powerful illumination and energy efficiency
Versatility: The best high bay LED light is adaptable to various applications and installation requirements.
Reliability: The durable construction of the light ensures a long lifespan.
Safety: The low-glare design allows for improved visual comfort and safety
When you choose the HBR02 series, your business can optimize its lighting systems, improve productivity, enhance safety,minimize energy costs, and ensure a more sustainable environment.
This high-bay LED light series is a state-of-the-art lighting solution designed to fulfill the demanding requirements of large industrial and commercial spaces. With its powerful illumination, energy efficiency, versatility, and smart control options, the HBR02 series provides a reliable and cost-effective way to transform any large space into a well-lit, safe, and productive environment.
